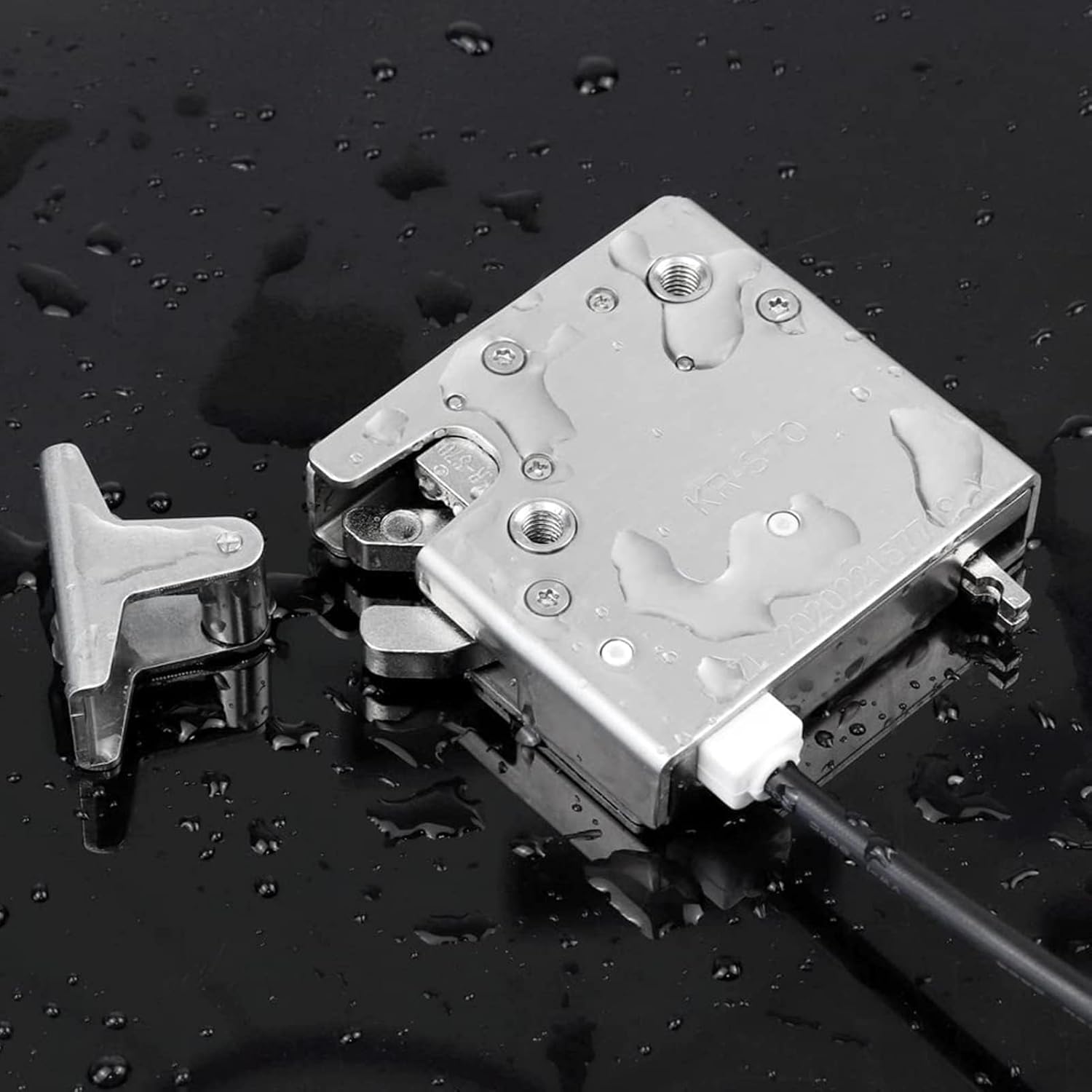

Generic Electronic Rotary Latch, Electric Locks, 12V Waterproof, Electronic Motor Servo Mechanical Auto Locker Door Lock, for Logistics Locker Express Cabinet, Silver, ST-7070

Our gear motor-driven lock sets itself apart from competitors' electromagnetically-driven electromechanical locks. The ST-7070 offers the convenience of electronic access control and the security of a verified and robust all-metal rotary latch design, all in a compact and integrated package. It features a simple one-button operation, making it easy to close, and the electronic drive streamlines access for various applications. Terminal Black Wire [1]: Power negative GND (-); Terminal Red Wire [2]: Power positive 12V (+); Operation method: Power on/off to open/close lock (each power cycle toggles lock state once); Terminal Blue Wire [3]: Lock detection switch common terminal (COMMON); Terminal White Wire [4]: Lock detection switch normally open terminal (NO);

• A gear-motor drive distinguishes the latch from competitive solenoid driven electromechanical latches – with lower power requirements, higher load capacity.
• High strength & steel construction operates against high mechanical loads; Compact latch housing minimizes space requirements and maintains the clean, concealed exterior look.
• Internal micro switch for latch open / close output signal, Convenient mechanical override enables manual release during a power failure.
• Mechanical emergency lever, can be unlocked manually in case of power failure. AWG24 wire with PVC protecting tube.

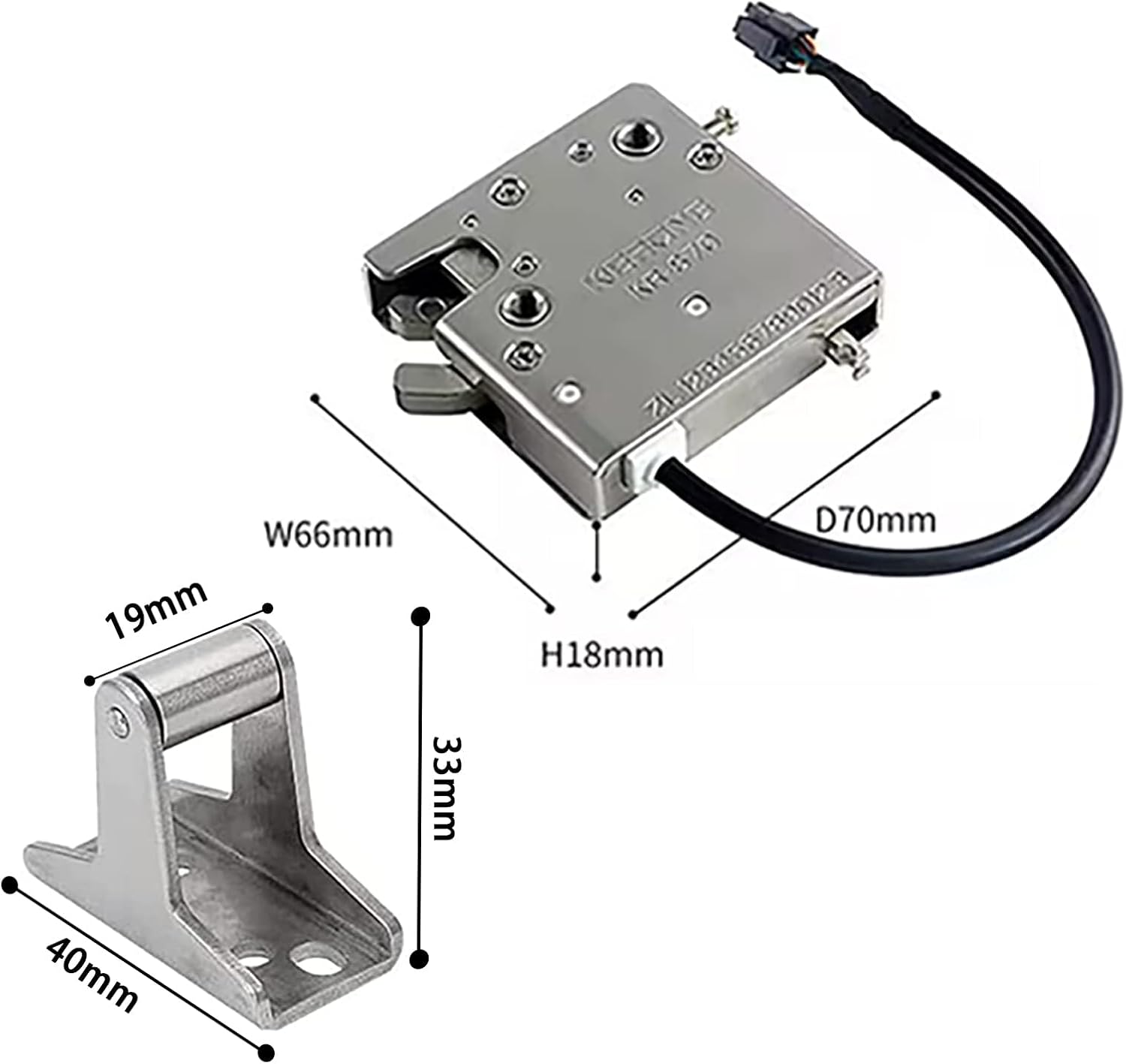

• Zinc Alloy, can pass more than 72 hours salt & spray test. Thickness as 6.0mm, not easy to be broken. 304 stainless steel, with good toughness and corrosion resistance. Thickness as 2.0mm, strong enough.
• Our electronic rotary latch is suitable for waterproof beach locker, courier cabinets, storage cabinets, supermarket lockers, vending machine, school locker, cell phone locker, shared umbrella, shared battery, shared scooter, shared bicycle, electric motorcycle trunks, and so on.
